KEROSENE
HEATING SYSTEMS

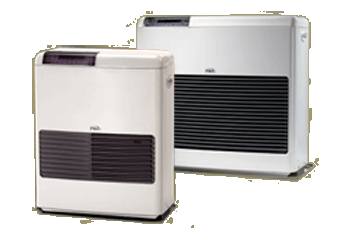

Monitor heating systems are keeping folks warm from Maine to Florida in homes of every size, decor and style imaginable. These heating system will make your living space warm and comfortable.
Monitor owners gain a 15% energy saving by using a direct vent system. Monitor's "pipe within a pipe" has only a 2.5 in. diameter and a low profile outside.
 The Monitor 2200
The Monitor 2200 has many of the same unique features found in the Monitor 2400 - child lock, seven day programmable temperatures, contemporary styling, efficiency and economical operation.
The Monitor 2200 is rated for a 1,000 to 1,400 square foot home. The average fuel consumption per consumer is approximately 1 to 2 gallons per day during the winter season.
Specifications
 |
EFFICIENCY: |
93 % |
|
FUEL SOURCE: |
1.32 Gallon Internal Tank or Separate Tank |
|
FUEL TYPE: |
K-1 Kerosene or High Quality, Low Sulphur No 1. Stove Oil |
|
POWER SOURCE: |
Electric 120 V AC, 60 Hz |
|
DIMENSIONS: |
25.5 "H by 21 W" by 12.5" deep |
|
WEIGHT: |
69 lbs. (Empty) |
| |
HIGH |
HIGH/MEDIUM |
MEDIUM/LOW |
LOW |
| BTU Rating / Hour |
22,000 |
17,400 |
11,700 |
9,600 |
| BTU Output / Hour |
20,400 |
16,200 |
10,900 |
8,900 |
Fuel Consumption
Gallon / Hour |
.164 |
.13 |
.09 |
.07 |
The Monitor 2400
The Monitor 2400 has many features including child lock, seven day programmable temperatures, contemporary styling, efficiency and economical operation.
The Monitor 2400 is rated for a 1,400 to 2,200 square foot home. The average fuel consumption is approximately 2 to 4 gallons per day during the winter season.
Specifications
|
EFFICIENCY: |
93 % |
|
FUEL SOURCE: |
Separate Tanks |
|
FUEL TYPE: |
K-1 Kerosene or High Quality, Low Sulphur No 1. Stove Oil |
|
POWER SOURCE: |
Electric 120 V AC, 60 Hz |
|
DIMENSIONS: |
26.6" H by 28.7" W by 14" deep |
|
WEIGHT: |
82 lbs. (Empty) |
| |
HIGH |
HIGH/MEDIUM |
MEDIUM/LOW |
LOW |
| BTU Rating / Hour |
43,000 |
32,000 |
24,600 |
16,200 |
| BTU Output / Hour |
37,200 |
26,900 |
20,700 |
13,600 |
Fuel Consumption
Gallon / Hour |
.319 |
.24 |
.18 |
.12 |
Please call for pricing information.
|
